Industrial fume extraction systems are engineered ventilation systems designed to capture airborne fumes, smoke, fine particles, and other contaminants generated during industrial processes. They are widely used in metal fabrication, welding, chemical processing, electronics manufacturing, pharmaceutical production, laboratories, and industrial maintenance facilities.
These systems combine extraction hoods, ductwork, fans, filtration equipment, and discharge arrangements to manage airborne contaminants near their source. Depending on the application, they may use particulate filters, activated carbon, wet scrubbers, or specialized treatment technologies. Appropriate system design helps maintain workplace air quality, protect equipment, and support compliance with applicable environmental and occupational safety requirements.
Context

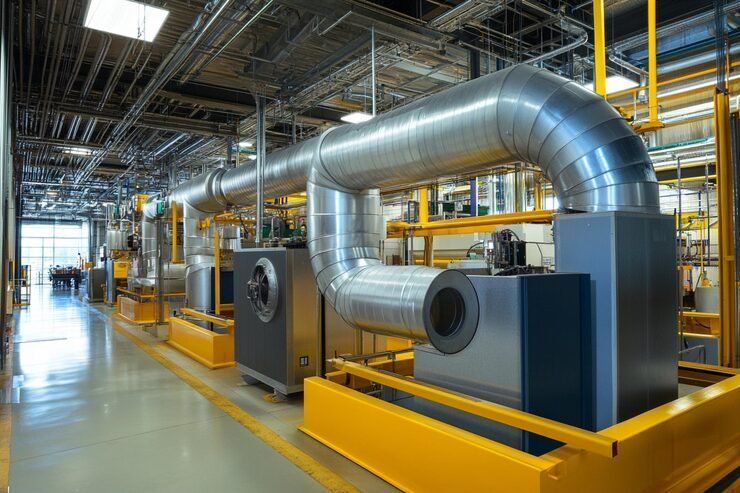

What Are Industrial Fume Extraction Systems?
An industrial fume extraction system captures contaminated air and transfers it through equipment designed to remove or reduce specific pollutants. Fumes may contain fine solid particles, metal oxides, gases, vapors, or mixtures of these substances. Their composition depends on the process, materials, temperatures, and chemicals involved.
A typical system includes a capture hood or extraction arm, ductwork, an air-moving fan, a filtration or treatment unit, and a control arrangement. Some systems also include spark arrestors, pre-separators, monitoring instruments, and treated-air discharge equipment.
The capture device is particularly important because contaminants should be collected close to the point where they are generated. If the extraction hood is poorly positioned or airflow is insufficient, pollutants may spread into the surrounding workplace before reaching the filtration equipment.
Industrial fume extraction differs from general room ventilation. General ventilation dilutes contaminants across a larger space, while local exhaust ventilation aims to capture pollutants near their source. Many industrial facilities use both approaches as part of an overall air-quality strategy.
Major Types of Industrial Fume Extraction Systems
1. Welding Fume Extraction Systems
Welding fume extraction systems capture particles generated during arc welding, gas metal arc welding, flux-cored welding, and related processes. They may use movable extraction arms, welding torches with integrated extraction, fixed hoods, or centralized duct systems.
The filtration unit is selected according to particle characteristics, welding materials, process conditions, and the required airflow. Some applications require additional spark management or specialized treatment for particular metals and coatings.
2. Portable Fume Extractors
Portable extractors are compact systems designed for localized operations or workstations that require flexible positioning. They commonly include an extraction arm, fan, filter compartment, and movable housing.
These units are used in maintenance workshops, repair facilities, laboratories, soldering areas, and small fabrication operations. Their suitability depends on the contaminant concentration, required capture airflow, filter type, and operating duration.
3. Centralized Fume Extraction Systems
Centralized systems serve multiple workstations through a shared network of extraction hoods and ductwork. A central filtration unit collects contaminated air from several production areas.
These arrangements are common in large fabrication facilities, manufacturing plants, and industrial workshops. Duct design, balancing, simultaneous operating loads, and maintenance access are important considerations.
4. Soldering Fume Extraction Systems
Soldering extraction systems capture fumes produced during electronic assembly, circuit-board repair, and other soldering operations. They may use bench-mounted arms, integrated extraction tools, or overhead capture devices.
Depending on the materials and process, filtration may include particulate filters and activated carbon. Filter selection should reflect the actual contaminants, including any relevant flux-related vapors.
5. Thermal Cutting Fume Extraction Systems
Laser cutting, plasma cutting, and other thermal processes can generate smoke, fine particles, and metal-containing aerosols. Extraction systems may use cutting-table extraction, zoned downdraft arrangements, or enclosed machine ventilation.
The system must account for cutting speed, material type, sheet dimensions, and the distribution of extraction openings. Appropriate filtration and spark-control provisions may be needed for certain processes.
6. Chemical Fume Extraction Systems
Chemical extraction systems are designed for fumes and vapors generated during chemical handling, laboratory procedures, coating, cleaning, or selected industrial reactions. Depending on the contaminant, treatment may involve chemical scrubbers, activated carbon, or other specialized media.
Material compatibility is essential because corrosive or reactive substances can damage ductwork, fans, filters, and housings.
7. High-Vacuum Extraction Systems
High-vacuum systems use relatively high suction pressure and smaller extraction hoses to collect contaminants close to a process. They are used for selected welding, grinding, cutting, and maintenance operations where a concentrated capture point is appropriate.
System design must match the required airflow, pressure loss, hose dimensions, and contaminant characteristics.
Extraction and Filtration Technologies
Local Exhaust Ventilation: A hood, arm, enclosure, or integrated capture device collects contaminants near the source. Capture effectiveness depends on position, airflow, hood design, and surrounding air movement.
Mechanical Filtration: Filters separate airborne particles from the airstream. Different filter designs and efficiency levels are available for metal fumes, dust, smoke, and other aerosols.
High-Efficiency Particulate Filtration: HEPA filters are designed to capture very small airborne particles at a specified efficiency under defined test conditions. Their suitability depends on the system design, filter rating, sealing, and the contaminants involved.
Activated Carbon Adsorption: Activated carbon can capture certain vapors and gaseous compounds through adsorption. Performance depends on the chemical properties of the contaminant, humidity, temperature, media selection, and replacement schedule.
Wet Scrubbing: Wet scrubbers bring contaminated air into contact with a liquid to remove selected particles or gases. They are used in applications where the contaminants and process conditions are compatible with liquid-based treatment.
Electrostatic Precipitation: Electrostatic systems charge airborne particles and collect them on oppositely charged surfaces. They are used in selected industrial applications, but performance depends on particle characteristics and the system configuration.
Spark Arrestors and Pre-Separators: These devices remove or reduce selected sparks, larger particles, or heavier contaminants before they reach downstream filtration components. They can help protect filters, but they do not eliminate every fire or explosion risk.
Airflow Monitoring and Automatic Controls: Sensors, pressure indicators, and control systems can monitor airflow, filter loading, fan performance, and operating status. Alarms can alert operators when a system requires inspection or maintenance.
Comparison of Industrial Fume Extraction Systems
| System type | Main technology | Common applications |
|---|---|---|
| Welding fume extractor | Local capture and particulate filtration | Welding workshops |
| Portable extractor | Compact fan and replaceable filters | Repair and maintenance work |
| Centralized extraction | Shared ductwork and central filtration | Large manufacturing facilities |
| Soldering extractor | Local capture and particle or vapor filtration | Electronics assembly |
| Thermal cutting extraction | Table or enclosure extraction | Laser and plasma cutting |
| Chemical fume extraction | Adsorption or chemical treatment | Chemical handling and laboratories |
| High-vacuum extraction | High suction pressure at the capture point | Specialized industrial operations |
Importance of Industrial Fume Extraction Systems
Industrial fumes can contain fine particles and chemical contaminants that may affect workers, equipment, and the surrounding environment. The hazards vary significantly according to the process and materials involved. For example, welding different alloys can generate different metal-containing fumes, while heating coatings may release additional decomposition products.
Capturing contaminants at their source can reduce their spread through the workplace. Appropriate filtration or treatment can also reduce the quantity of pollutants released from the extraction system, subject to the technology's capabilities and applicable emission requirements.
Extraction systems may help maintain visibility, reduce deposition of airborne particles on machinery, and support cleaner production areas. However, the presence of an extractor does not automatically establish that workplace exposure is adequately controlled. System performance must be assessed under actual operating conditions.
Effective control typically combines suitable process design, local extraction, general ventilation where appropriate, maintenance, exposure assessment, and safe work practices. Respiratory protective equipment may also be required in some circumstances, based on a documented risk assessment.
Manufacturing Processes
System Design and Engineering
Manufacturing begins with identifying the process, contaminant composition, source location, expected generation rate, temperature, airflow requirement, and operating schedule.
Engineers determine the capture hood, duct dimensions, fan capacity, filtration stages, discharge arrangement, and control system. Airflow calculations and pressure-loss assessments help establish whether the system can collect contaminants from the intended work areas.
Material compatibility is important when fumes contain corrosive substances or elevated temperatures. The design may require special alloys, coated steel, stainless steel, or chemically resistant polymers.
Extraction Hood and Ductwork Manufacturing
Extraction hoods, arms, enclosures, and ducts are manufactured through cutting, forming, welding, machining, and assembly. Hood geometry is selected according to the process and the distance between the source and capture point.
Ductwork is designed to transport contaminated air while managing pressure loss, leakage, and particle deposition. Bends, branches, access doors, and balancing dampers must be arranged to support the intended airflow distribution.
Fan and Air-Moving Equipment Assembly
Fans and blowers move air through the extraction network. Their selection depends on required airflow, static pressure, temperature, contaminant characteristics, and system resistance.
Assemblies may include electric motors, impellers, bearings, housings, vibration-control components, and variable-speed drives. Depending on the dust or vapor hazards, specialized fan construction and electrical equipment may be necessary.
Filtration Equipment Manufacturing
Filter housings are manufactured to support the required filter arrangement, airflow, sealing, and maintenance access. The filtration unit may contain cartridge filters, bag filters, HEPA filters, activated carbon beds, or other media appropriate to the application.
Some systems use staged filtration, with a pre-filter to collect larger particles before finer filtration. Seals, filter-retention mechanisms, and housing integrity are important because bypass leakage can reduce overall performance.
Wet scrubbers require additional components such as liquid circulation pumps, spray nozzles, contact chambers, mist eliminators, and liquid-handling equipment.
Electrical and Control Integration
Control systems coordinate fans, dampers, filter-cleaning mechanisms, and monitoring instruments. Sensors may measure differential pressure, airflow, temperature, or other operating parameters.
Programmable controls and operator interfaces can provide alarms, operating records, and maintenance indicators. Automated controls may also link extraction operation to machine status, subject to the system's safety design.
Assembly, Testing, and Performance Verification
Completed systems undergo mechanical, electrical, and functional checks. Tests may include fan rotation, vibration, leakage, airflow measurement, filter seating, control operation, and safety-function verification.
Commissioning should verify capture performance at the actual workstations, not merely airflow at the fan. Depending on the application, testing may also include pressure measurements, particle sampling, contaminant monitoring, or evaluation against applicable occupational exposure and emission requirements.
Global Manufacturers and Suppliers
The industrial fume extraction market includes manufacturers of localized extractors, centralized filtration systems, industrial ventilation equipment, and specialized air-pollution control technology.
Examples of recognized manufacturers and equipment providers include:
Donaldson: Develops industrial dust, fume, and mist collection systems for manufacturing and processing applications.
Nederman: Specializes in industrial air filtration, source extraction, and environmental technology for industrial workplaces.
Lincoln Electric: Supplies welding equipment and related technologies, including fume extraction products for selected welding applications.
Plymovent: Develops extraction and filtration systems for welding fumes, vehicle exhaust, and other industrial airborne contaminants.
Camfil: Provides air filtration technologies for industrial and commercial environments, including selected high-efficiency filtration applications.
KEMPER: Specializes in welding fume extraction and filtration equipment.
BOFA International: Develops fume extraction and filtration systems for applications such as laser processing, electronics, and selected industrial processes.
Sentry Air Systems: Provides localized fume and particulate extraction equipment for laboratory, industrial, and technical applications.
ESTA Absaugtechnik: Develops industrial extraction and filtration systems for dust, fumes, and related airborne contaminants.
These companies serve different market segments, and not every manufacturer provides all extraction technologies. Current product ranges, contaminant compatibility, regional availability, and system configurations should be verified directly.
When evaluating manufacturers or suppliers, consider the contaminant type, required capture airflow, filter efficiency, pressure drop, fan capacity, duct layout, discharge requirements, noise levels, maintenance access, and monitoring features.
Other important considerations include filter replacement availability, installation support, commissioning, technical documentation, operator training, and compatibility with existing production equipment.
Industrial Applications
Welding and Metal Fabrication
Welding operations generate fumes whose composition depends on the base metal, filler material, coatings, and welding method. Local extraction arms, integrated torch extraction, and centralized systems are used to capture these fumes.
Metal fabrication facilities may also require extraction for grinding, cutting, brazing, and thermal processing. Different processes can require different filtration and spark-management arrangements.
Laser and Plasma Cutting
Thermal cutting processes generate smoke and particles that can accumulate around cutting tables or machine enclosures. Zoned extraction tables and suitable filtration systems collect contaminated air close to the cutting area.
System performance depends on cutting conditions, material thickness, table design, and the opening or zone through which extraction occurs.
Electronics Manufacturing
Soldering, selected coating processes, and other electronics operations may release fumes or vapors. Localized extraction helps capture contaminants near the workstation, while filtration is selected according to the materials and process chemistry.
Chemical and Pharmaceutical Production
Chemical processing can generate corrosive gases, solvent vapors, aerosols, or reaction fumes. Extraction and treatment systems must be designed around the specific chemical hazards, including compatibility with duct materials, filters, and discharge arrangements.
Laboratories and Research Facilities
Laboratories use fume hoods, extraction arms, and specialized treatment systems to manage airborne contaminants produced during experiments and sample preparation. The appropriate equipment depends on the chemicals, procedures, and laboratory risk assessment.
Plastics and Polymer Processing
Heating, extrusion, molding, and thermal treatment of polymers can release fumes or volatile compounds depending on the material and processing conditions. Extraction systems may be installed near heaters, extruders, molding equipment, and other emission points.
Foundries and Metal Casting
Foundry operations can generate smoke, fine particles, and process gases during melting, pouring, mold preparation, and related activities. Extraction hoods and industrial filtration systems are selected according to the process and contaminant characteristics.
Printing, Coating, and Surface Treatment
Printing and coating operations may generate solvent vapors, aerosols, and other airborne contaminants. Depending on the substance, treatment may require adsorption, ventilation, condensation, or another suitable control technology rather than particulate filtration alone.
Recent Developments
Industrial fume extraction technology continues to develop through improved filter media, automated airflow controls, more efficient fans, and digital monitoring. Differential-pressure sensors can help operators identify increasing filter resistance and schedule maintenance before airflow becomes inadequate.
Variable-speed drives can adjust fan operation to changing production demands when the system is designed for this approach. Automated dampers and workstation controls can also help direct extraction toward active processes.
High-efficiency filtration and improved sealing are important in applications involving fine particles. Specialized adsorbents and chemical treatment technologies are being developed for selected vapor and gas-control needs, although effectiveness depends on the contaminant and operating conditions.
Manufacturers are also integrating extraction equipment with welding machines, laser cutters, and production control systems. This can coordinate extraction with process activity and improve operational visibility. Actual performance must be verified through commissioning and ongoing inspection.
Laws or Policies
Industrial fume extraction systems may be subject to occupational health, workplace ventilation, environmental emission, fire safety, and machinery-safety requirements. The specific obligations depend on the contaminant, process, facility, and installation region.
In the United States, relevant guidance and requirements may come from the Occupational Safety and Health Administration (OSHA), the Environmental Protection Agency (EPA), and applicable state or local authorities. Other countries have their own occupational exposure limits, industrial ventilation guidance, and environmental regulations.
Facilities should assess hazardous substances generated during welding, cutting, chemical processing, and other operations. Some contaminants require specific exposure controls, monitoring, or additional protective measures.
Combustible dust, sparks, and certain reactive materials can create fire or explosion hazards. Extraction systems handling such materials may require appropriate spark controls, explosion protection, grounding, and equipment selected for the classified environment.
Filter maintenance and disposal must reflect the collected contaminant. Used filters may contain hazardous metal particles, chemical residues, or other substances that require controlled handling. Facilities should consult applicable regulations and manufacturer instructions before maintenance or disposal.
Tools and Resources
Manufacturer technical documentation: System specifications, filter data sheets, fan curves, installation instructions, and maintenance manuals help assess equipment suitability.
Airflow measurement instruments: Anemometers, flow-measurement devices, and pressure gauges help verify airflow and pressure conditions during commissioning and inspection.
Differential-pressure monitoring: Pressure indicators and electronic sensors help track filter loading and identify potential airflow restrictions.
Air-quality assessment equipment: Suitable sampling instruments can assess airborne particles, selected gases, or specific contaminants. Instrument selection depends on the substance and the required measurement method.
Industrial ventilation guidance: Technical guidance from recognized occupational health and industrial ventilation organizations can help with hood design, airflow assessment, and exposure control.
Filter compatibility data: Manufacturer information helps establish whether filter media are suitable for the expected particle size, temperature, humidity, and chemical composition.
Maintenance and inspection records: Logs of filter changes, airflow checks, alarms, and repairs support system reliability and performance verification.
FAQs
1. What is an industrial fume extraction system used for?
An industrial fume extraction system captures airborne fumes, smoke, particles, or selected vapors near their source and transfers them through appropriate filtration or treatment equipment. It is used in welding, metal fabrication, electronics manufacturing, chemical processing, laboratories, and other industrial operations.
2. What is the difference between fume extraction and general ventilation?
Fume extraction generally uses local exhaust ventilation to capture contaminants close to where they are generated. General ventilation supplies and removes air across a broader area, helping dilute and remove airborne contaminants. Both may be needed depending on the workplace and process.
3. Which filter is suitable for industrial fumes?
The correct filter depends on the contaminant. Mechanical filters are used for airborne particles, HEPA filters provide high-efficiency particle capture under specified conditions, and activated carbon can adsorb certain vapors. Chemical scrubbers or other technologies may be required for particular gases or corrosive substances.
4. How often should fume extraction filters be replaced?
Replacement intervals depend on contaminant loading, operating hours, filter type, airflow resistance, and manufacturer instructions. Differential-pressure readings and inspection results can help determine when cleaning or replacement is needed. Filters should not be replaced solely according to a fixed calendar interval if operating conditions vary substantially.
5. What should manufacturers consider when selecting a fume extraction system?
Important factors include contaminant composition, generation rate, capture location, required airflow, filtration efficiency, temperature, chemical compatibility, discharge requirements, noise, maintenance access, and applicable safety standards. A professional assessment may be necessary for hazardous or complex processes.
Conclusion
Industrial fume extraction systems help control airborne contaminants generated by welding, cutting, chemical processing, electronics manufacturing, and other industrial activities. Their effectiveness depends on capturing contaminants near their source and using filtration or treatment technology suited to the actual pollutants.
Understanding extraction methods, filtration equipment, manufacturing processes, supplier capabilities, and regulatory requirements helps facilities select appropriate systems. Advances in filter technology, airflow control, monitoring, and production-line integration continue to support more effective industrial air-quality management.
