Semiconductor lithography is a core process used to create extremely small circuit patterns on semiconductor wafers.
Semiconductor lithography equipment uses controlled light or other patterning methods to transfer a circuit design onto a light-sensitive material called photoresist. This process helps determine how precisely the tiny features of an integrated circuit can be formed.
A semiconductor lithography system is part of a much larger wafer fabrication process. Before lithography begins, a wafer is prepared and coated with photoresist. The lithography system then creates a pattern, which is developed and followed by processes such as etching, deposition, cleaning, and inspection.
Why Lithography Exists
Modern electronic devices contain billions of microscopic components. Smartphones, computers, vehicles, communication equipment, industrial electronics, and data-center hardware all depend on semiconductor devices with increasingly dense circuit structures.
Lithography provides a controlled method for reproducing these circuit patterns across many areas of a wafer. The basic concept has remained recognizable for decades, while the light sources, optics, alignment systems, software, and wafer-handling technologies have become increasingly sophisticated.
Traditional optical lithography uses a patterned mask and a light source. Depending on the manufacturing process, chipmakers may use ultraviolet wavelengths such as deep ultraviolet, while advanced processes increasingly rely on extreme ultraviolet technology.
Main Lithography Approaches
Several technologies are used across semiconductor manufacturing. Their roles depend on the required feature dimensions, wafer type, manufacturing layer, device architecture, and production process.
| Lithography approach | General principle | Typical role |
|---|---|---|
| DUV lithography | Uses deep-ultraviolet light | Many established and advanced layers |
| EUV lithography | Uses 13.5 nm extreme-ultraviolet light | Very small advanced circuit patterns |
| Nanoimprint lithography | Transfers patterns through a patterned template | Alternative patterning approach |
| Electron beam lithography | Uses focused electrons | Research, masks, and specialized patterning |
| Maskless lithography | Creates patterns without a conventional photomask | Specialized and development applications |
| Mask aligner systems | Aligns masks directly with wafers | Research and selected production processes |
Why Semiconductor Lithography Matters
The importance of lithography comes from its connection to circuit density, pattern accuracy, and manufacturing complexity. As circuit features become smaller, the semiconductor manufacturing process has less room for pattern placement errors.
A semiconductor photolithography system must repeatedly position and expose wafers with high precision. Even very small differences in alignment can affect how multiple circuit layers connect with one another.
The Role of Precision
Precision lithography equipment combines several systems rather than relying on optics alone. These can include wafer stages, exposure sources, alignment sensors, optical components, control software, temperature management, and metrology equipment.
A high precision lithography system must also account for changes that occur during operation. Heat, vibration, wafer deformation, optical effects, and environmental conditions can influence pattern placement.
DUV and EUV
DUV lithography equipment remains important across a wide range of semiconductor manufacturing processes. DUV systems can use different wavelengths and configurations, allowing chipmakers to pattern numerous layers according to process requirements.
EUV lithography equipment uses a much shorter wavelength of approximately 13.5 nanometers. Because EUV light behaves differently from conventional ultraviolet light, EUV semiconductor equipment requires specialized reflective optics, vacuum environments, light sources, and wafer-handling systems.
The distinction is important because advanced semiconductor manufacturing does not depend on one lithography technology for every layer. Different layers can use different patterning approaches according to their technical requirements.
Lithography and Everyday Electronics
The effects of lithography are not limited to semiconductor factories. Improvements in chip manufacturing can influence the capabilities of processors, memory devices, communication hardware, sensors, and other electronic components.
For general readers, the key point is simple: lithography helps translate a digital circuit design into physical structures on a wafer. The smaller and more accurately those structures can be patterned, the more complex circuit architectures can be manufactured within a given area.
Recent Developments in Semiconductor Lithography
Semiconductor lithography has continued to evolve from 2024 through 2026. Current development is focused on improving pattern resolution, productivity, alignment, energy efficiency, and manufacturing integration.
High-NA EUV Development
One of the major developments is High Numerical Aperture EUV, commonly called High-NA EUV. The technology increases numerical aperture from 0.33 in established EUV platforms to 0.55 in the newer High-NA approach, providing a pathway toward finer patterning.
Research and manufacturing preparation accelerated during this period. A joint High-NA EUV laboratory established by ASML and imec has provided access to a prototype system together with supporting metrology, wafer-handling, and processing equipment.
By 2026, High-NA EUV had moved beyond laboratory preparation into selected high-volume manufacturing applications. Intel reported production use of High-NA EUV for selected layers of its 18A process, while continued development is focused on broader manufacturing integration.
Higher EUV Source Power
Another development involves EUV source power. Higher source power can support greater wafer throughput when other parts of the system are capable of handling the additional exposure requirements.
ASML reported a 1,000-watt EUV light-source demonstration during 2025, representing an important development in EUV source technology. The broader objective is to increase productivity while maintaining pattern quality and process control.
Larger Photomask Development
The lithography ecosystem is also examining larger photomask formats for High-NA EUV. In 2026, ASML and TSMC announced an initiative focused on developing a 12-inch photomask platform, with a pilot line targeted for the future and broader High-NA production integration planned further ahead.
This illustrates that semiconductor lithography is not limited to the exposure machine itself. Masks, resist materials, metrology, wafer handling, software, and manufacturing standards all have to evolve together.
Nanoimprint Lithography
Nanoimprint lithography is another technology receiving attention. Instead of projecting a pattern through an optical system, a patterned template is pressed into resist material, somewhat like a highly precise stamp.
Canon has developed a nanoimprint lithography system for semiconductor manufacturing and delivered an FPA-1200NZ2C system to the Texas Institute for Electronics for research and prototype activities.
Nanoimprint technology remains distinct from conventional optical lithography and represents another approach to forming very small structures on wafers.
Semiconductor Lithography Equipment and Systems
A semiconductor lithography machine is only one part of the broader lithography environment. Modern production involves interconnected equipment and software that prepare, expose, measure, and control wafers.
Key Equipment Categories
A semiconductor lithography equipment supplier or lithography equipment manufacturer may work across different parts of the patterning process. Common categories include:
- Semiconductor photolithography equipment for optical pattern transfer.
- Wafer lithography equipment for controlled wafer exposure.
- Wafer exposure equipment for transferring circuit patterns.
- Lithography exposure systems for precision pattern formation.
- Optical lithography systems using ultraviolet light and lenses.
- EUV lithography systems using reflective optics and EUV light.
- DUV lithography systems for established and advanced process layers.
- Mask aligner lithography systems for direct mask-to-wafer alignment.
- Electron beam lithography systems for specialized pattern creation.
- Automated semiconductor lithography systems for controlled wafer handling and exposure.
Automation and Integration

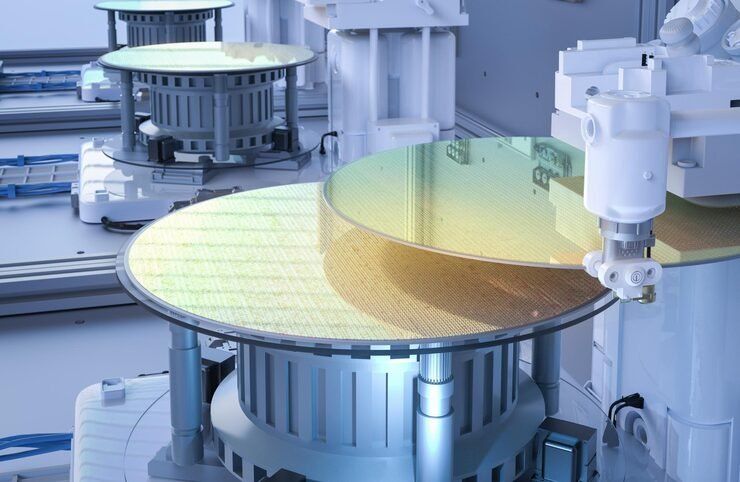

Semiconductor lithography automation helps coordinate wafer movement, exposure conditions, alignment, measurements, and process controls. Automated lithography systems can connect with surrounding fabrication equipment and factory-control systems.
A semiconductor lithography system integrator may therefore work across multiple components rather than focusing only on the exposure mechanism. A turnkey semiconductor lithography system can combine equipment, controls, wafer handling, and process integration into a coordinated manufacturing setup.
The broader category of semiconductor wafer fabrication equipment also includes deposition, etching, cleaning, inspection, metrology, and other systems. Lithography interacts with these stages because the pattern created on the wafer guides subsequent manufacturing processes.
Tools and Resources for Understanding Lithography
Readers who want to understand semiconductor lithography can use several types of educational and technical resources. Manufacturer technology pages can explain lithography principles, while research organizations publish information about emerging patterning technologies.
Useful resources include:
- Semiconductor equipment manufacturer technology libraries for system explanations.
- Semiconductor research institutes for technical developments and demonstrations.
- University nanotechnology laboratories for educational material.
- Semiconductor industry publications for manufacturing trends.
- Technical glossaries for terms such as numerical aperture, overlay, resolution, resist, wafer, and photomask.
- Process diagrams for understanding how lithography connects with etching and deposition.
- Basic optics calculators for learning how wavelength, numerical aperture, and resolution are related.
For beginners, it is useful to learn the basic vocabulary first. Understanding wafer, mask, resist, exposure, overlay, resolution, DUV, and EUV makes more advanced lithography information easier to follow.
FAQs
What is semiconductor lithography?
Semiconductor lithography is a patterning process used to create microscopic circuit structures on semiconductor wafers. It commonly uses controlled light exposure and a patterned mask, although other approaches such as nanoimprint and electron beam lithography also exist.
How does semiconductor lithography equipment work?
Semiconductor lithography equipment positions a wafer, aligns it with a pattern, and transfers that pattern into a resist layer. The exact method depends on whether the system uses DUV, EUV, nanoimprint, electron beam, or another patterning technology.
What is the difference between DUV and EUV lithography equipment?
DUV lithography equipment uses deep-ultraviolet light, while EUV lithography equipment uses extreme-ultraviolet light at approximately 13.5 nanometers. They use different optical architectures and have different roles within semiconductor manufacturing.
What is a High-NA EUV lithography system?
A High-NA EUV lithography system is an advanced EUV platform designed around a numerical aperture of 0.55 rather than 0.33. The higher numerical aperture is intended to support finer patterning for future semiconductor process generations.
Is nanoimprint lithography different from photolithography?
Yes. Nanoimprint lithography transfers a pattern through physical contact between a patterned template and resist, while conventional photolithography uses light and optical projection. The two approaches therefore use different pattern-transfer mechanisms.
Conclusion
Semiconductor lithography is a fundamental part of wafer fabrication because it converts circuit designs into physical patterns on semiconductor wafers. DUV, EUV, High-NA EUV, nanoimprint, and electron beam approaches each have different roles within the wider lithography landscape. Recent developments are increasingly focused on finer patterning, higher productivity, improved alignment, automation, and integration with surrounding fabrication processes. Understanding these fundamentals provides useful context for following the continued evolution of semiconductor manufacturing.
